The structure of a wav file format

Hi there, in reality, do you know?

in a word, What is a wav file? And explicitly the wav file format?

I am using c/c++ to explain the audio file format  in full detail

Sound storage in computer files

Sound files provide a platform for computer’s to manipulate audio by music signal processing, without worrying complex task such as ADC/DAC

Digital Encoding

There are different types of digital encoding some use compress data other use uncompressed data but the most popular encoding is PCM(Pulse Code Modulation)

Sample precision

in short, How many bits(or) bytes used in Audio data for encoding each sample

to put it another way, Usually, the PCM format sound file will use single(8 bit), two(16 bit), three, or four byte’s sample’s to represent the sample’s

so far, Single byte(8 bit) audio is not used in professional audio recording  and it is char type  range from 0….255

Two bytes (16 bit) audio is a standard CD/DAT precision and it is a short type ranges from  -32,768 to 32,767 so the SNR for CD format will be 96 dB

16-bit precision is good for most of the audio application and also it is a famous norm

Three bytes and four-byte audio sample will be saved as long type because in C we won’t have 3byte (24-bit) data type

RIFF(Resource Interchange File Format) wave sound files

in brief, the RIFF file contains the wave file format which is a chunked file format and it is native to little-endian processor’s

in essence, chunks are a portion of data and each portion of a chunk will  have  a different information

on the contrary, every Chunk will have it’s own mini header and ID

The structure of a wav file format

Rendered by QuickLaTeX.com

RIFF chunk

Chunk ID: which will be in ASCII character’s RIFF

Chunk data size: Chunk size –this header size

RIFF TYPE ID: which will be ASCII character’s WAVE

Format subchunk

chunk ID: contain letters  fmt

Remember  in reality, “fmt ”  have  four characters with space included

chunk data size: the size of the format chunk

Format Tag :It is a code, where 1 standard for PCM  other codes for different encoding

Channels :No of interleaved audio   channels available

Sampling rate :Samples per second

Byte rate: Bytes per second for data transmission

Channels  X  samples per second  X  bits per sample/8

Block Align : is the arrangement of data in a single sample

Channels  X bits per sample/8

Bits per sample: no of bits in a sample

data subchunk

chunk ID: contain letters  data

chunk data size: the size of the audio data in bytes

Byte ordering the problem of data portability b/w different machines

The byte ordering confusion came into existence because of different byte ordering conventions used in different machines

For instance, intel byte ordering uses  little-endian and Motorola byte ordering uses big-endian

in sum, There are two types endianness

  • Little-endian: store the least significant byte (LSB) first
  • Big-endian: store the most significant  byte (MSB) first

Soundfile formats are either little-endian or big-endian

Check your processor endianness

#include <stdio.h>
#include <stdlib.h>
int main()
{
    unsigned int j=1;
    char *x =(char*)&j;
    {
     if (*x==0)
    printf(" you have big endian byte ordering machine\n");
    }
    if (*x==1)
    printf("you have little endian byte ordering machine\n");
    return 0;
}

Output

check the size of .wav file

#include <iostream>
using namespace std;

int main()
{
    const char* filePath;
    int length;
   string input;
    {
        cout << "Enter the wave file name: ";
       cin >> input;
        cin.get();
        filePath = input.c_str();
    }
    FILE* wavFile = fopen(filePath, "r");
    if (wavFile == NULL)
    {
        fprintf(stderr, "file cannot be open %s \n", filePath);
    }
    {
         fseek(wavFile, 0, SEEK_END);
   length = ftell(wavFile);
   fclose(wavFile);
   printf("Total size of the wav file = %d bytes\n", length);
   return 0;
    }
}

Output

Check the Header size of the .Wav file

#include <iostream>
using namespace std;

int main()
{
    typedef struct  WAV_HEADER
{
    // RIFF Chunk
    uint8_t         Chunk_ID[4];        // RIFF
    uint32_t        Chunk_data_Size;      // RIFF Chunk data Size
    uint8_t         RIFF_TYPE_ID[4];        // WAVE
    // format sub-chunk
    uint8_t         Chunk1_ID[4];         // fmt
    uint32_t        chunk1_data_Size;  // Size of the format chunk
    uint16_t        Format_Tag;    //  format_Tag 1=PCM
    uint16_t        Num_Channels;      //  1=Mono 2=Sterio
    uint32_t        Sample_rate;  // Sampling Frequency in (44100)Hz
    uint32_t        byte_rate;    // Byte rate
    uint16_t        block_Align;     // 4
    uint16_t        bits_Per_Sample;  // 16
    /* "data" sub-chunk */
    uint8_t         chunk2_ID[4]; // data
    uint32_t        chunk2_data_Size;  // Size of the audio data
} obj;
obj header;
    const char* filePath;
   string input;
    {
        cout << "Enter the wave file name: ";
       cin >> input;
        cin.get();
        filePath = input.c_str();
    }
    FILE* fp = fopen(filePath, "r");
    if (fp == NULL)
    {
        fprintf(stderr, " file cannot be open %s \n", filePath);
    }
    {
         size_t num = fread(&header, 1, sizeof(header), fp);
    cout << "Header size " << num << " bytes." << endl;
   return 0;
    }
}

Output

Reading RIFF Chunk of .wav FILE

#include <iostream>
using namespace std;

int main()
{
    typedef struct  WAV_HEADER
{
    // RIFF Chunk
    uint8_t         Chunk_ID[4];        // RIFF
    uint32_t        Chunk_data_Size;      // RIFF Chunk data Size
    uint8_t         RIFF_TYPE_ID[4];        // WAVE
    // format sub-chunk
    uint8_t         Chunk1_ID[4];         // fmt
    uint32_t        chunk1_data_Size;  // Size of the format chunk
    uint16_t        Format_Tag;    //  format_Tag 1=PCM
    uint16_t        Num_Channels;      //  1=Mono 2=Sterio
    uint32_t        Sample_rate;  // Sampling Frequency in (44100)Hz
    uint32_t        byte_rate;    // Byte rate
    uint16_t        block_Align;     // 4
    uint16_t        bits_Per_Sample;  // 16
    /* "data" sub-chunk */
    uint8_t         chunk2_ID[4]; // data
    uint32_t        chunk2_data_Size;  // Size of the audio data
} obj;
obj header;
    const char* filePath;
   string input;
    {
        cout << "Enter the wave file name: ";
       cin >> input;
        cin.get();
        filePath = input.c_str();
    }
    FILE* fp = fopen(filePath, "r");
    if (fp == NULL)
    {
        fprintf(stderr, " file cannot be open %s \n", filePath);
    }
    {
        // Read RIFF Chunk
         fread(&header, 1, sizeof(header), fp);
     cout << "Chunk ID                :" << header.Chunk_ID[0] << header.Chunk_ID[1] << header.Chunk_ID[2] << header.Chunk_ID[3] << endl;
     cout << "Chunk data Size         :" << header.Chunk_data_Size << endl;
     cout << "RIFF TYPE ID            :" << header.RIFF_TYPE_ID[0] << header.RIFF_TYPE_ID[1] << header.RIFF_TYPE_ID[2] << header.RIFF_TYPE_ID[3] << endl;
   return 0;
    }
}

Output

Reading RIFF Chunk  and  format sub Chunk of .wav FILE

#include <iostream>
using namespace std;

int main()
{
    typedef struct  WAV_HEADER
{
    // RIFF Chunk
    uint8_t         Chunk_ID[4];        // RIFF
    uint32_t        Chunk_data_Size;      // RIFF Chunk data Size
    uint8_t         RIFF_TYPE_ID[4];        // WAVE
    // format sub-chunk
    uint8_t         Chunk1_ID[4];         // fmt
    uint32_t        Chunk1_data_Size;  // Size of the format chunk
    uint16_t        Format_Tag;    //  format_Tag 1=PCM
    uint16_t        Num_Channels;      //  1=Mono 2=Sterio
    uint32_t        Sample_rate;  // Sampling Frequency in (44100)Hz
    uint32_t        byte_rate;    // Byte rate
    uint16_t        block_Align;     // 4
    uint16_t        bits_per_sample;  // 16
    /* "data" sub-chunk */
    uint8_t         chunk2_ID[4]; // data
    uint32_t        chunk2_data_Size;  // Size of the audio data
} obj;
obj header;
    const char* filePath;
   string input;
    {
        cout << "Enter the wave file name: ";
       cin >> input;
        cin.get();
        filePath = input.c_str();
    }
    FILE* fp = fopen(filePath, "r");
    if (fp == NULL)
    {
        fprintf(stderr, " file cannot be open %s \n", filePath);
    }
    {
        // Read RIFF Chunk
         fread(&header, 1, sizeof(header), fp);
     cout << "Chunk ID                :" << header.Chunk_ID[0] << header.Chunk_ID[1] << header.Chunk_ID[2] << header.Chunk_ID[3] << endl;
     cout << "Chunk data Size         :" << header.Chunk_data_Size << endl;
     cout << "RIFF TYPE ID            :" << header.RIFF_TYPE_ID[0] << header.RIFF_TYPE_ID[1] << header.RIFF_TYPE_ID[2] << header.RIFF_TYPE_ID[3] << endl;
         // format subchunk
         cout<<"-------------------------------------------------------------------------------"<<endl;
     cout << "Chunk1_ID               :" << header.Chunk1_ID[0] << header.Chunk1_ID[1] << header.Chunk1_ID[2] << header.Chunk1_ID[3] << endl;
     cout << "Chunk1 data Size        :" << header.Chunk1_data_Size << endl;
     cout << "Format Tag              :" << header.Format_Tag << endl;
     cout << "Num_Channels            :" << header.Num_Channels << endl;
     cout << "Sample_rate             :" << header.Sample_rate << endl;
     cout << "byte_rate               :" << header.byte_rate << endl;
     cout << "block_Align             :" << header.block_Align << endl;
     cout << "bits per sample         :" << header.bits_per_sample << endl;
   return 0;
    }
}

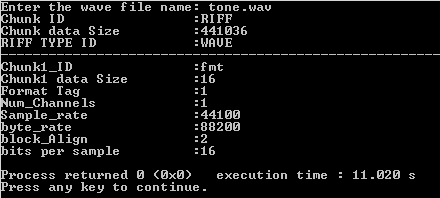

Output

Reading RIFF Chunk, format sub Chunk and data sub Chunk of a .wav FILE

#include <iostream>
using namespace std;

int main()
{
    typedef struct  WAV_HEADER
{
    // RIFF Chunk
    uint8_t         Chunk_ID[4];        // RIFF
    uint32_t        Chunk_data_Size;      // RIFF Chunk data Size
    uint8_t         RIFF_TYPE_ID[4];        // WAVE
    // format sub-chunk
    uint8_t         Chunk1_ID[4];         // fmt
    uint32_t        Chunk1_data_Size;  // Size of the format chunk
    uint16_t        Format_Tag;    //  format_Tag 1=PCM
    uint16_t        Num_Channels;      //  1=Mono 2=Sterio
    uint32_t        Sample_rate;  // Sampling Frequency in (44100)Hz
    uint32_t        byte_rate;    // Byte rate
    uint16_t        block_Align;     // 4
    uint16_t        bits_per_sample;  // 16
    /* "data" sub-chunk */
    uint8_t         Chunk2_ID[4]; // data
    uint32_t        Chunk2_data_Size;

     // Size of the audio data
} obj;
obj header;
    const char* filePath;
   string input;
    {
        cout << "Enter the wave file name: ";
       cin >> input;
        cin.get();
        filePath = input.c_str();
    }
    FILE* fp = fopen(filePath, "r");
    if (fp == NULL)
    {
        fprintf(stderr, " file cannot be open %s \n", filePath);
    }
    {
        // Read RIFF Chunk
         fread(&header, 1, sizeof(header), fp);
     cout << "Chunk ID                :" << header.Chunk_ID[0] << header.Chunk_ID[1] << header.Chunk_ID[2] << header.Chunk_ID[3] << endl;
     cout << "Chunk data Size         :" << header.Chunk_data_Size << endl;
     cout << "RIFF TYPE ID            :" << header.RIFF_TYPE_ID[0] << header.RIFF_TYPE_ID[1] << header.RIFF_TYPE_ID[2] << header.RIFF_TYPE_ID[3] << endl;
         // format subchunk
         cout<<"-------------------------------------------------------------------------------"<<endl;
     cout << "Chunk1_ID               :" << header.Chunk1_ID[0] << header.Chunk1_ID[1] << header.Chunk1_ID[2] << header.Chunk1_ID[3] << endl;
     cout << "Chunk1 data Size        :" << header.Chunk1_data_Size << endl;
     cout << "Format Tag              :" << header.Format_Tag << endl;
     cout << "Num_Channels            :" << header.Num_Channels << endl;
     cout << "Sample_rate             :" << header.Sample_rate << endl;
     cout << "byte_rate               :" << header.byte_rate << endl;
     cout << "block_Align             :" << header.block_Align << endl;
     cout << "bits per sample         :" << header.bits_per_sample << endl;
     cout<<"-------------------------------------------------------------------------------"<<endl;
     cout << "Chunk2_ID               :" << header.Chunk2_ID[0] << header.Chunk2_ID[1] << header.Chunk2_ID[2] << header.Chunk2_ID[3] << endl;
     cout << "Chunk2 data Size        :" << header.Chunk2_data_Size << endl;
   return 0;
    }
}

Output

On this occasion, let’s take four different .wav files and mix them to create a single .wav file

Reggae.wav

in the first place, take a file called Moonlight Beach by Kevin MacLeod

Link: https://incompetech.filmmusic.io/song/6671-moonlight-beach

License: http://creativecommons.org/licenses/by/4.0/

African.wav

in the second place, take a file called Rite of Passage by Kevin MacLeod

Link: https://incompetech.filmmusic.io/song/4291-rite-of-passage

License: http://creativecommons.org/licenses/by/4.0/

Piano.wav

in the third place, take a file called A Very Brady Special by Kevin MacLeod

Link: https://incompetech.filmmusic.io/song/5760-a-very-brady-special

License: http://creativecommons.org/licenses/by/4.0/

Jazz.wav

in the fourth place, take a file called Smooth Lovin by Kevin MacLeod

Link: https://incompetech.filmmusic.io/song/4379-smooth-lovin

License: http://creativecommons.org/licenses/by/4.0/

In a word, we created a single.wav from four different .wav files

that is to say, The Mix of Reggae, African, Jazz,  and Piano

this time, Mix wav files and Reading and Writing .Wav file

Note:on the whole, the Reggae.wav, African.wav, Piano.wav,Jazz.wav have sample rate 44100HZ and all the four audio files have the mono channel

to clarify, A tool called Audacity is used to convert a stereo .wav to mono.wav file

main.cpp

#include <vector>
#include <string>
#include <cassert>
#include "wav.h"
using namespace std;
const int SAMPLE_RATE = 44100;
const string IN_DIR = "C:\\Users\\Mohammed Anees\\Desktop\\New folder (2)\\InputFiles\\";
const string OUT_DIR = "C:\\Users\\Mohammed Anees\\Desktop\\New folder (2)\\OutputFiles\\";
// Read a mono audio file, write to an output file.
void readWriteAudio()
{
    printf("readWriteAudio\n");
    // Read the input file
    vector<float> sourceBuf;
    int sr;
    int numCh;
    string sourcePath = IN_DIR + "Tone.wav";
    audioRead(sourcePath, sourceBuf, sr, numCh);
    auto numFrames = sourceBuf.size();
    // Set up an output buffer
    vector<float> outBuf(numFrames);
    // For each output frame
    for (size_t i = 0; i < numFrames; i++)
    {
        // Get input sample
        float x = sourceBuf[i];
        // Copy it to the output buffer
        float amp_gain = 0.5;
        outBuf[i] = amp_gain * x;
    }
    // Write the audio to file
    string outPath = OUT_DIR + "Tone Copy.wav";
    audioWrite(outPath, outBuf, SAMPLE_RATE);
}
void mixAudioFiles()
{
    printf("mix all Audio Files\n");
    // Set up buffers for all the audio files
    vector<float> Reggae;
    vector<float> African;
    vector<float> Piano;
    vector<float> Jazz;
    // Read the audio files
    int sr;
    int numCh;
    audioRead(IN_DIR + "AcesHigh/Reggae.wav",   Reggae, sr, numCh);
    audioRead(IN_DIR + "AcesHigh/African.wav", African, sr, numCh);
    audioRead(IN_DIR + "AcesHigh/Piano.wav",   Piano, sr, numCh);
    audioRead(IN_DIR + "AcesHigh/Jazz.wav",     Jazz, sr, numCh);

    // Set up an output buffer Or set the output length of a wav file
    float durSecs = 40.0;
    int numFrames = SAMPLE_RATE*durSecs;
    vector<float> outBuf(numFrames);
    // For each output frame
    for (int i = 0; i < numFrames; i++)
    {
        // Add each sample of all files one by one
        float sum = 0.0;
        sum =sum+ Reggae[i];
        sum =sum+ African[i];
        sum =sum+ Piano[i];
        sum =sum+ Jazz[i];
        outBuf[i] = sum;
    }
    // Write the audio
    string outPath = OUT_DIR + "Mix.wav";
    audioWrite(outPath, outBuf, SAMPLE_RATE);
}


int main()
{
mixAudioFiles();
// readWriteAudio();
    return 0;
}

wav.cpp

#include <cstring>
#include <cassert>
#include <fstream>
#include"wav.h"
#include <climits>
using namespace std;
static const int BITS_PER_SAMPLE = 16;
static const int MIN_SAMPLE_RATE = 8000;
static const int MAX_SAMPLE_RATE = 96000;
static void deinterleaveAudio(const vector<float>& interleaved, vector<vector<float>>& split, int numCh)
{
    assert(numCh > 0 && numCh <= 2);
    float* srcPtr = (float*)interleaved.data();
    int n = (int)interleaved.size()/numCh;
    split.resize(numCh);
    for (int ch = 0; ch < numCh; ch++)
        split[ch].resize(n);
    for (int i = 0; i < n; i++)
    {
        for (int ch = 0; ch < numCh; ch++)
            split[ch][i] = *srcPtr++;
    }
}

static void interleaveAudio(const vector<vector<float>>& split, vector<float>& interleaved)
{
    int numCh = (int)split.size();
    assert(numCh > 0 && numCh <= 2);
    int n = (int)split[0].size();
    interleaved.resize(n*numCh);
    float *outP = interleaved.data();
    for (int i = 0; i < n; i++)
    {
        for (int ch = 0; ch < numCh; ch++)
            *outP++ = split[ch][i];
    }
}
void checkProcessorEndianness()
{
	int j = 1;
	bool littleEndian = (*(char*)(&j) == 1) ? true : false;
	assert(littleEndian);
}
// Returns true if 4-character codes are equal
bool Equal (const char a[4], const char b [4])
{
	return (strncmp(a, b, 4) == 0);
}

// Reads a wav file header
// If successful, return the number of samples
int readWavHeader(
				  istream	&fp,
				  int		&Sample_Rate,
				  int		&numSamples,
				  short		&Num_Channels,
				  short		&Bits_Per_Sample )
{
    checkProcessorEndianness();
	//assert( fp != NULL );
	assert( sizeof(int) == 4 );
	assert( sizeof(short) == 2 );
	// check Chunk ID is RIFF from wav structure
	char chunk_ID[4];
	fp.read(chunk_ID, sizeof(chunk_ID));
	assert(fp.gcount() == sizeof(chunk_ID));
	assert( Equal(chunk_ID, "RIFF"));
	// check  Chunk data size of RIFF Chunk
	int chunk_data_Size;
	fp.read((char*)&chunk_data_Size, sizeof(chunk_data_Size));
	assert(fp.gcount() == sizeof(chunk_data_Size));
	// check   RIFF Type ID is letter WAVE from wav structure
	fp.read(chunk_ID, sizeof(chunk_ID));
	assert(fp.gcount() == sizeof(chunk_ID));
	assert(Equal(chunk_ID, "WAVE"));
	//----------------------- format subchunk---------------------------
	char chunk1_ID[4];
	fp.read(chunk1_ID, sizeof(chunk1_ID));
	assert(fp.gcount() == sizeof(chunk1_ID));
	assert( Equal(chunk1_ID, "fmt "));
	// check  Chunk data size of RIFF Chunk
	int chunk1_data_Size;
	fp.read((char*)&chunk1_data_Size, sizeof(chunk1_data_Size));
	assert(fp.gcount() == sizeof(chunk1_data_Size));
	short Format_Tag;
	fp.read((char*)&Format_Tag, sizeof(Format_Tag));
	assert(fp.gcount() == sizeof(Format_Tag));
	assert(Format_Tag == 1);
	fp.read((char*)&Num_Channels, sizeof(Num_Channels));
	assert(fp.gcount() == sizeof(Num_Channels));
	assert(Num_Channels == 1 || Num_Channels == 2);
	fp.read((char*)&Sample_Rate, sizeof(Sample_Rate));
	assert(fp.gcount() == sizeof(Sample_Rate));
	assert( Sample_Rate >= 8000 && Sample_Rate <= 96000 );
	int Byte_Rate;
	fp.read((char*)&Byte_Rate, sizeof(Byte_Rate));
	assert(fp.gcount() == sizeof(Byte_Rate));
	short Block_Align;
	fp.read((char*)&Block_Align, sizeof(Block_Align));
	assert(fp.gcount() == sizeof(Block_Align));
	fp.read((char*)&Bits_Per_Sample, sizeof(Bits_Per_Sample));
	assert(fp.gcount() == sizeof(Bits_Per_Sample));
	assert( Bits_Per_Sample % 8 == 0);
	assert( Byte_Rate == Sample_Rate * Num_Channels * Bits_Per_Sample/8 );
	assert( Block_Align == Num_Channels * Bits_Per_Sample/8 );
	// -- "data" subchunk --
char chunk2_ID[4];
	fp.read(chunk2_ID, sizeof(chunk2_ID));
	assert(fp.gcount() == sizeof(chunk2_ID));
	assert( Equal(chunk2_ID, "data"));
	// check  Chunk data size of RIFF Chunk
	uint32_t chunk2_data_Size;
	fp.read((char*)&chunk2_data_Size, sizeof(chunk2_data_Size));
	assert(fp.gcount() == sizeof(chunk2_data_Size));
    numSamples = chunk2_data_Size / Block_Align;
	return numSamples;
}
// Write the wav header
int writeWavHeader(
				   ostream&		fp,
				   const int	sampleRate,
				   const int	numSamples,
				   const short	numChannels,
				   const short	bitsPerSample )
{
    checkProcessorEndianness();
	assert( sampleRate >= 8000 && sampleRate <= 96000 );
	assert( numSamples >= 0 );
	assert( numChannels == 1 || numChannels == 2 );
	assert( bitsPerSample == 8 || bitsPerSample == 16 );
	assert( sizeof(int) == 4 );
	assert( sizeof(short) == 2 );
	fp.write("RIFF", 4);
	int Chunk2_data_Size = numSamples*numChannels*bitsPerSample/8;
	int chunkSize = 36 + Chunk2_data_Size;
	fp.write((char*)&chunkSize, sizeof(chunkSize));
	fp.write("WAVE", 4);
	//----------------------- format subchunk---------------------------
	fp.write("fmt ", 4);
	int subChunk1Size =16;
	fp.write((char*)&subChunk1Size, sizeof(subChunk1Size));
	short Format_Tag = 1;
	fp.write((char*)&Format_Tag, sizeof(Format_Tag));
	fp.write((char*)&numChannels, sizeof(numChannels));
	fp.write((char*)&sampleRate, sizeof(sampleRate));
    //Channels  X  samples per second  X  bits per sample/8
	int byteRate = sampleRate * numChannels * bitsPerSample/8;
	fp.write((char*)&byteRate, sizeof(byteRate));
	//Channels  X bits per sample/8
	short blockAlign = numChannels * bitsPerSample/8;
	fp.write((char*)&blockAlign, sizeof(blockAlign));
	fp.write((char*)&bitsPerSample, sizeof(bitsPerSample));
	// -- "data" subchunk --
	fp.write("data", 4);
	fp.write((char*)&Chunk2_data_Size, sizeof(Chunk2_data_Size));
	return 0;
}
// Write an audio file.
void audioWrite(const string& path, const vector<float> &x, int sr, int numCh)
{
	// Open the output wav file
	ofstream outStream(path.c_str(), ios::out | ios::binary);
	assert(outStream.is_open());
	// Get the number of samples
    int numSamples = (int)x.size()/numCh;
	assert(numSamples > 0);
	// Write the wav header
	writeWavHeader(outStream, sr, numSamples, numCh, BITS_PER_SAMPLE);
	// Convert the samples from normalized [-1.0, 1.0] floating-point to 16-bit shorts
	vector<short> shortBuf(numSamples*numCh);
	float *src = (float*)x.data();
	short *dst = shortBuf.data();
	for (int i = 0; i < numSamples*numCh; i++)
	{
		float flt = *src++;
		flt = min<float>(flt, 1.0);
		flt = max<float>(flt, -1.0);
		*dst++ = SHRT_MAX * flt;// SHRT_MAX =+32767
	}
	// Write the audio data
	outStream.write((char*)shortBuf.data(), numCh*numSamples*sizeof(shortBuf[0]));
	outStream.flush();
	// Close the file
	outStream.close();
}
// Write an audio file starting from split (non-interleaved) data
void audioWrite(const string& path, const vector<vector<float>> &x, int sr)
{
    vector<float> interleaved;
    interleaveAudio(x, interleaved);
    audioWrite(path, interleaved, sr, (int)x.size());
}
// Read an audio file
void audioRead(const string& path, vector<float> &x, int &sr, int &numCh)
{
	checkProcessorEndianness();
	// Open the input wav file
	ifstream inStream(path.c_str(), ios::in | ios::binary);
	if (!inStream.is_open())
	{
		printf("Couldn't open %s\n", path.c_str());
		assert(inStream.is_open());
	}
	// Read the wav header
	int numSamples;
	short bitsPerSample;
    short numChannels;
	readWavHeader(inStream, sr, numSamples, numChannels, bitsPerSample);
    numCh = numChannels;
	assert(sr >= MIN_SAMPLE_RATE && sr <= MAX_SAMPLE_RATE);
	assert(numCh >= 1);
	assert(bitsPerSample % 8 == 0);
	int bytesPerSample = bitsPerSample / 8;
	// Adjust output vector to correct size to accomodate the samples
	x.resize(numCh*numSamples);
	// Read all the audio data. Since we'll be reading in in multiple formats, we read
	// it as unsigned bytes
	vector<uint8_t> audioData(numChannels*numSamples*bytesPerSample);
	inStream.read((char*)audioData.data(), numCh*numSamples*bytesPerSample);
	// Convert to normalized [-1,1] floating point
	// Get absolute maximum sample value, e.g. for 16-bit audio abs max value is 2^15 = 32768.
	float maxSample = 1 << (bitsPerSample-1);
	// Get scale factor to apply to normalize sum of samples across channels in a single sample frame.
	float scale = 1.0 / maxSample;
	uint8_t *src = audioData.data();
	for (int i = 0; i < numCh*numSamples; i++)
	{
        int32_t sample = 0;
        uint8_t* sampleBytes = (uint8_t*)(&sample); // We assume this is little-endian!
        // Read in the sample value byte-by-byte. Sample is assumed to be stored in
        // little-endian format in the file, so least-significant byte is always first.
        for (int b = 0; b < bytesPerSample; b++)
        {
            sampleBytes[b] = *src++;
        }
        // If it's 1 byte (8 bits) per sample
        if (bytesPerSample == 1)
        {
            // By convention, 8-bit audio is *unsigned* with sample values from 0 to 255. To
            // make it signed, we need to translate 0 to -128.
            sample += CHAR_MIN;// CHAR_MIN = -128
        }
        // Otherwise, if the most-significant bit of most-significant byte is 1, then
        // sample is negative, so we need to set the upper bytes to all 1s.
        //Hex – 0XFF  is   11111111
        //Hex –0x80   is 10000000
        else if (sampleBytes[bytesPerSample-1] & 0x80) //Reads the MSB sign bit
        {
            for (size_t b = bytesPerSample; b < sizeof(sample); b++)
            {
                sampleBytes[b] = 0xFF;
            }
        }
		// Apply scale to get normalized mono sample value for this sample frame
		x[i] = scale * sample;
	}
	// Close the file
	inStream.close();
}
// Read into split (not interleaved) buffers
void audioRead(const string& path, vector<vector<float>> &x, int &sr)
{
    int numCh;
    vector<float> interleaved;
    audioRead(path, interleaved, sr, numCh);
    deinterleaveAudio(interleaved, x, numCh);
}

wav.h

#ifndef __Wav__
#define __Wav__
#include <vector>
#include <string>
using namespace std;
/// Writes an audio file from an interleaved buffer
void audioWrite(const string& path, const vector<float> &x, int sr, int numCh = 1);
/// Writes an audio file from non-interleaved audio
void audioWrite(const string& path, const vector<vector<float>> &x, int sr);
/// Reads an audio file into interleaved buffer
void audioRead(const string& path, vector<float> &x, int &sr, int &numCh);
/// Reads an audio file into non-interleaved buffers
void audioRead(const string& path, vector<vector<float>> &x, int &sr);

///	@parameter	path	Path to audio file
///	@parameter	x		Audio data. Will be clipped if outside [-1, 1] range.
/// @parameter	sr		Sample rate of audio data
/// @parameter  numCh   Number of channels

#endif

Reference

  • The Audio Programming Book by Richard Boulanger and Victor Lazzarini

Mohammed Anees

Hey there, welcome to aneescraftsmanship I am Mohammed Anees an independent developer/blogger. I like to share and discuss the craft with others plus the things which I have learned because I believe that through discussion and sharing a new world opens up

Leave a Reply

Your email address will not be published.
