understanding recursion concept

Recursion means a function call, which calls itself repeatedly until it terminated by its base condition

Always recursion should have a base condition so, that it won’t  fall into an infinite loop

If the base condition  is false then the recursion loop will be terminated and if the base condition is true then it will make recursive calls till the base condition becomes false

Remember: you will find recursion a little bit harder to understand than iteration

The things which you can do with recursion you can also do with stack and iteration

It is always better you consider alternative approaches before using recursion

Recursion is useful for the searching and sorting algorithms and also it is a common topic in interviews

Anything done with recursion can also be done with iteration(loop)

If that is true! Then why should we use a confusing concept called recursion?

Because, in programming there will be always pros and cons so, being a software developer you need to make the right decisions based on pros and cons

Iterative approaches, tend to be more efficient because they don’t add any additional stack layer for every function call they made

Stack overflow

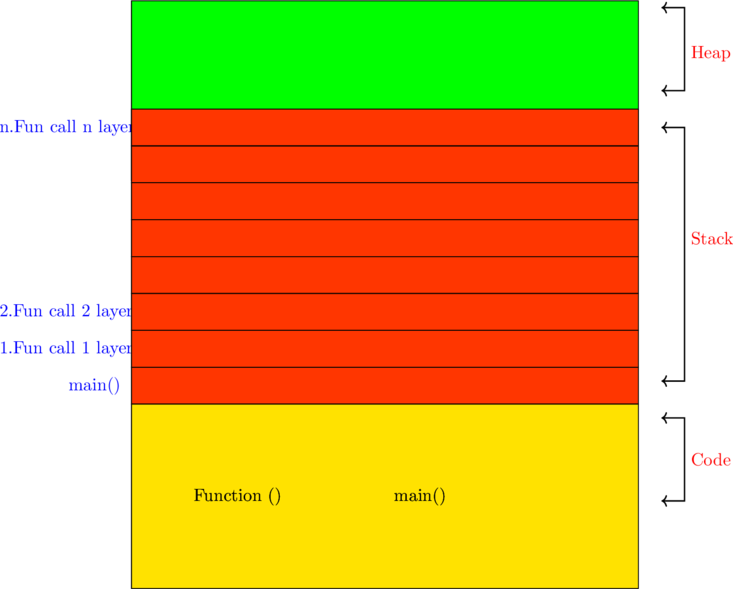

As you might know, the memory is a limited resource and that is divided into three section

1. code section
2. stack section
3. heap section

stack overflow means when a function call that, falls into an indefinite loop so, because, of that, the program will run out of memory and crashes

recursive algorithms can be very space inefficient because they create a new stack layer for every recursive call

Recursion will have two-phases

1. Calling phase
2. Returning phase

Calling Phase

Consider a simple C example

The below example shows that the function is taking parameter n and checking the condition whether n>0, if the base condition is true then it will print n and call itself

``````#include <stdio.h>
void function(int n)
{
if(n>0)
{
printf("%d",n);
function(n-1); // O(n) Time and O(n) space
}
}
int main()
{
int x=5;
function(x);
return 0;
}``````

Output

``54321``

Let’s analyze the time complexity of the above function which is O(n) and the space complexity will also be O(n)

Why the space complexity is O(n) here?

Because each recursive call will add a new layer to the stack, if it made 2 recursive calls then it will add 2 new layers to the stack and in case, if it is made n recursive call then it will add n new layers  to the stack

Tracing the recursive function

Recursive functions are always traced in the form of a tree

Here first it has to print and then call itself till it reaches condition (1-1)

Note: the printing is done at the calling time

Let’s implement the calling phase through a loop

``````#include <stdio.h>
void function(int n)
{
int i;
for(i=n;i>0;i--)
{
printf("%d",i);
}
}
int main()
{
int x=5;
function(x);
return 0;
}``````

Output

``54321``
``````#include <stdio.h>
void function(int n)
{
while(n>0)
{
printf("%d",n);
n--;
}
}
int main()
{
int x=5;
function(x);
return 0;
}``````

Output

``54321``

Let’s analyze the time complexity of the above function which is O(n) and the space complexity will also be O(1)

Note: if you  would like to write a calling phase function then it would  be better to convert  it to a loop because it will be more efficient when it comes to space but this will not be the same for every type of recursion or loop

Returning Phase

``````#include <stdio.h>
void function(int n)
{
if(n>0)
{
function(n-1);
printf("%d",n);
}
}
int main()
{
int x=5;
function(x);
return 0;
}``````

Output

``12345``

Tracing the recursive function

From the main function calling the function by passing a value of 5 then it will call itself by (5-1),(4-1),(3-1), and (2-1) till it reaches (1-1) condition where it will get terminated

Once the function gets terminated then at that instant, the function will go to the previous call (1-1) and print 1 similarly, it will call itself  till it reaches (5-1) and print 5

Note: the printing is done at the returning time

Let’s implement the returning phase through a loop

If a  recursive function has to do something at returning phase then it would be difficult to convert it to iterative form but it can be converted

``````#include <stdio.h>
void function(int n)
{
int i;
for(i=1;i<=n;i++)
{
printf("%d",i);
}
}
int main()
{
int x=5;
function(x);
return 0;
}``````

Output

``12345``
``````#include <stdio.h>
void function(int n)
{
int i=1;
while(i<=n)
{
printf("%d",i);
i++;
}
}
int main()
{
int x=5;
function(x);
return 0;
}``````

Output

``12345``

Difference b/w calling time and returning time

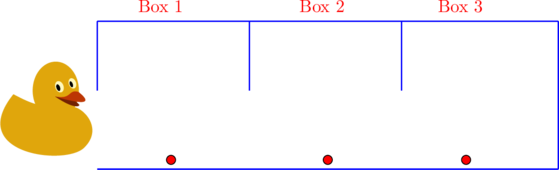

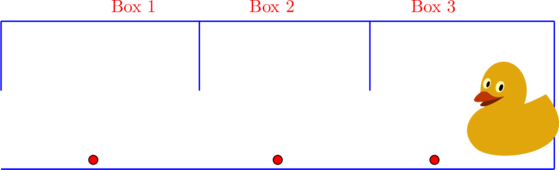

Let us suppose we have a duck house that have three boxes with one rice seed in each box

calling time

Assume, that you have instructed the duck to perform two steps as mentioned below recursively

1. Eat the rice seed(perform the task)
2. Move to the next box(recursive call)

First, the duck will  eat the rice seed in the Box1, second, the duck will move to the BOX2 then the duck will eat the rice seed in the Box2 and will move to Box3, finally, it will eat the rice seed in the Box3

O/P: 1 2 3

So, the duck is eating rice when moving forward

returning time

Assume, that you have instructed the duck to perform two steps as mentioned below recursively

1. Move to the next box (recursive call)
2. Eat the rice seed (perform the task)

First, the duck will move to Box1 second, the duck will move to Box2 third, the duck  will move to Box3 fourth, it will eat the rice seed from Box3 fifth, it will move to Box2 and it will eat the rice seed from the Box2 and finally, it will move to Box1 and will eat the rice seed in the Box1

O/P: 3 2 1

So, the duck will be eating rice during returning phase

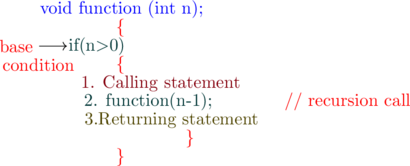

In a recursion function if any thing is there before the recursive call  then that statement will be executed at the calling time(Ascending) and if the statement is present after the recursive call then that statement will be executed at the returning time(descending)

``````#include <stdio.h>
void function(int n)
{
if(n>0)
{
printf("%d",n);
function(n-1);
printf("%d",n);
}
}
int main()
{
int x=5;
function(x);
return 0;
}``````

Output

``5432112345``

Tree recursion

If a recursive function calls itself  more than once then it is called a tree recursion

``````#include <stdio.h>
void function(int n)
{
if(n>0){
printf("%d", n);
function(n-1);
function(n-1);
}
}
int main() {
function(4);
return 0;
}``````

Output

``432112113211211``

The time complexity for the above tree recursive function is O() and the space complexity  is O(n)

A small practical example of recursion

Let’s suppose, you have a laptop and you would like to search a file called assignment_operator.cpp from the desktop but the problem is that you can not  find an assignment_operator.cpp program in a single folder, so, to find the file,  you need to search folders recursively

Let us see what do I mean?

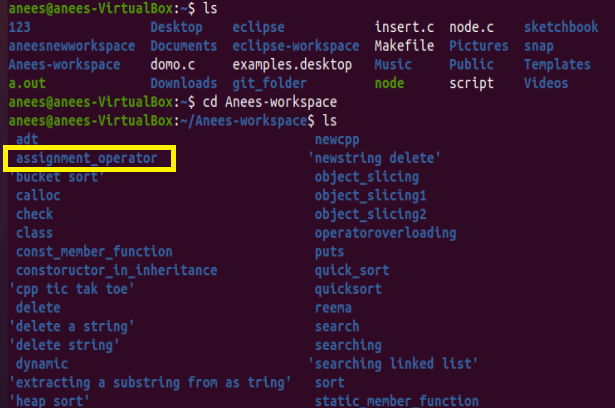

If you have a Linux operating system then you can use the below commands to search a specific file in your system

To list all the folders

``ls``

To access a specific folder

``cd``

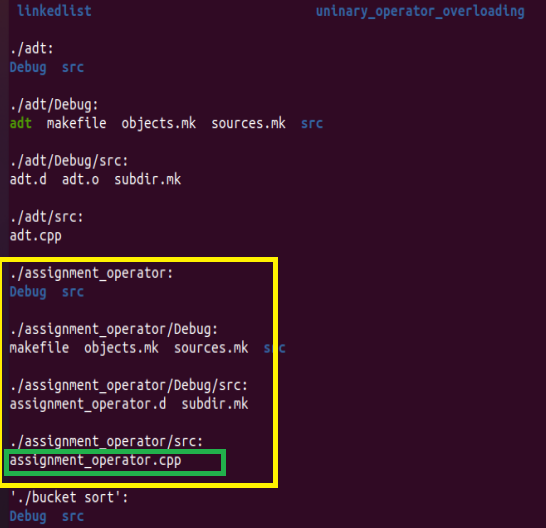

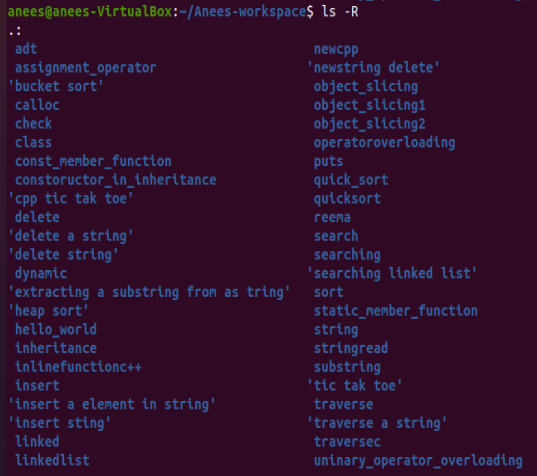

You can also see it here, in the Anees-workspace directory i have a folder called assignment_operator

``ls -R``

here, in the above command, R stands for recursion by using the above command we can view the files inside a folder

A practical example for recursion

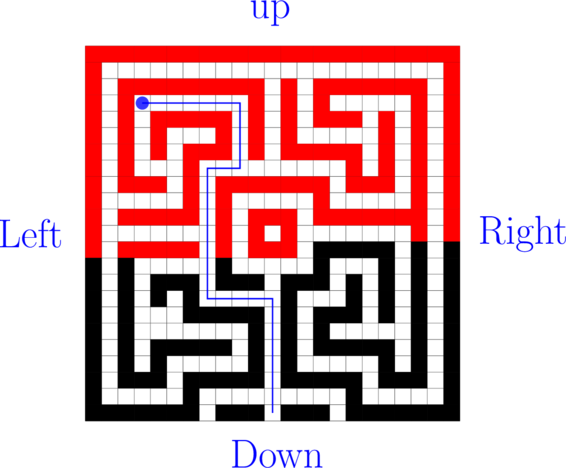

Consider a C++ program for finding the way through the maze

A maze is a grid and at each point, you can move left, right, down, up to find the way out of the maze

if we use recursion, then we can start at the beginning and move left, right, up down to find the way out of the maze

notice find_the_path function is recursively used

``````bool find_the_ path(maze,point_location)
//check it is already tried
{
return false;
}
// check if this position is exit
if(the_exit(maze,location))
{
return true;
}
//recall the position which has been tried
recall_position(maze,location)
if(move_right(maze,location,&new_location)){
if(find_the_path(maze,new_location))
{
return true;
}
}
if(move_up(maze,location,&new_location)){
if(find_the_path(maze,new_location)){
return true;
}
}
if(move_down(maze,location,&new_location)){
if(find_the_path(maze,new_location)){
return true;
}
}
if(move_left(maze,location,&new_location)){
if(find_the_path(maze,new_location)){
return true;
}
}
return false;
}``````

Sum of n natural numbers

``````#include <stdio.h>
#include <stdlib.h>
{
int i;
int sum=0;
for(i=0;i<=n;i++) //O(n) Time and O(1) space
{
sum=sum+i;
}
{
printf("%d",sum);
}
}
int main()
{
int x=5;
return 0;
}``````

Output

``15``

Sum of n natural numbers by using recursion

``````#include <stdio.h>
int function(int n)
{
{
if(n==0)
return 0;
else
return function(n-1)+n; // O(n) Time and O(n) space
}
}
int main()
{
int x=5;
int sum;
sum=function(x);
printf("%d",sum);
return 0;
}
``````
``15``

Sum(5)=15

Sum(4)+5=10+5=15

Sum(3)+4=6+4=10

Sum(2)+3=3+3=6

Sum(1)+2=1+2=3

Sum(0)+1=0+1

As you can see, from the above recursive tree  that the addition is done while returning

similarly, the height of the stack of the above function is 6 because it made 6 recursive calls so, for n calls the space complexity will  be O(n)

Factorial

n!=n*(n-1) n*(n-2) n*(n-3) n*(n-4) n*(n-5)……….3*2*1

so, that means n goes till it reaches value 1

n!=n*(n-1)!

8!=8*(7-1)!=8*7!

6!=1*2*3*4*5*6=720

0!=1

1!=1

Factorial using recursion

As you can see, the sum of n natural numbers and factorial are similar but in the sum of n natural numbers we did the addition fac(n-1)+n  and for factorial, we did multiplication fac(n-1)*n

For the multiplication of factorial, we use 1 instead of 0 because if we multiple anything with 0 will also become 0

``````#include <stdio.h>
int function(int n)
{
{
if(n==0)
return 1;
else
return function(n-1)*n; // O(n) Time and O(n) space
}
}
int main()
{
int x=6;
int fac;
fac=function(x);
printf("%d",fac);
return 0;
}``````

Output

``720``

Factorial with iteration

``````#include <stdio.h>
#include <stdlib.h>
void Fac(int n)
{
int i;
int fac=1;
for(i=1;i<=n;i++) //O(n) Time and O(1) space
{
fac=fac*i;
}
{
printf("%d",fac);
}
}
int main()
{
int x=6;
Fac(x);
return 0;
}``````

Output

``720``

Calculate exponents

= 2*2*2*2=16

To calculate exponents we can use a library called <math.h> and the <math.h>  library have a function called pow() to calculate exponents

Pow(2,4)=

``````#include <stdio.h>
#include <stdlib.h>
#include <math.h>
int main()
{
int p;
p=pow(2,2);
printf("%d",p);
return 0;
}``````

Output

``4``

Calculate exponents by using recursion

``````#include <stdio.h>
int power(int x, int y)
{
if(y==0)
return 1;
else
{
return power(x,y-1)*x;
}
}
int main()
{
int p;
p=power(2,2);
printf("%d",p);
return 0;
}``````

Output

``4``

Calculate exponents iteratively

``````#include <stdio.h>
void power(int m, int n)
{
int i;
int p=1;
for(i=1;i<=n;i++)
{
p=p*m;
}
{
printf("%d",p);
}
}
int main()
{
power(2,6);
return 0;
}``````

Output

``64``

Fibonacci numbers

Fib(n) can be defined as by recursive formula fib(n-2)+fib(n-1) where n>1 as well as by setting the values such as if n=0 then it will be 0 and if n=1 then it will be 1

Every term in Fibonacci numbers is obtained by adding previous two terms but at least should have two initial terms

For example, fib(8) means an addition of 4th term(3) and 5th term(5)

Fib(n)011235813
n0th term1st term2nd term3rd term4th term5th term6th term7th term

Fibonacci numbers by using recursion

``````#include <stdio.h>
int fib(int n)
{
{
if(n==0)
return 0;
if (n==1)
return 1;
else
return fib(n-1)+fib(n-2);
}
return 0;
}
int main()
{
int x=7;
int f;
f=fib(x);
printf("%d",f);
return 0;
}``````

Output

``13``

As you can see from the above function the 7th term of the Fibonacci series is 13

The time complexity of the above function is

Why it is ?

Because when we have a function and that function is calling two times then that means it is

Usually, when we use two loops such as a quadratic loop

``````for(i=0;i<10;i++)
for(j=0;j<10;j++)
{
statements;
}``````

the time taken quadratic loop is given by

Fibonacci numbers by using iteration

``````#include <stdio.h>
int fib(int n)
{
int to=0, t1=1, sum;
if(n<=1)
return n;
for(int i=2;i<=n;i++) //the loop starts from 2 and reaches the n
{
sum=to+t1;//Find the sum by adding two terms
to=t1; //replace the value t1 with t0
t1=sum; //replace the value of t1 with the sum
}
return sum;
}
int main()
{
int x=7;
printf("%d",fib(x));
return 0;
}``````

Output

``13``

The time complexity for the iterative function is O(n)

The logic

to     t1     sum

0  +   1      1

1  +  1       2  replace t0 with t1 and t1 with sum then repeat the same process

1  +  2       3

2  +  3       5

3  +  5       8

The O/P:  0 1 1 2 3 5 8

Dynamic programming

Dynamic programming means taking a recursive algorithm and finding the excessive calls(overlapping subproblems) and storing the results of the function so that it can be utilized again when needed

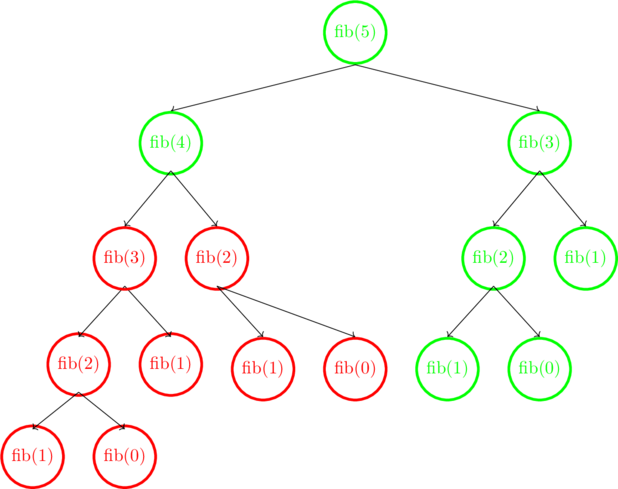

Recursion tree of Fibonacci numbers

The below  figure shows  the recursion tree  of fib(5) and it had made 15 calls

The red color calls are the excessive calls that the fib(5) had made

Excessive calls are the recursion function calls  that call themselves multiple times for the same values such as (recursive implementation of Fibonacci numbers)

Memoization

Memoization(remember) and reuse solutions to sub-problems so, that to solve the problem

To avoid excessive calls  by retaining  values  to be utilized for future calls we can use the static variable or global variable

On the other hand, by storing the results of the function calls in an array so, that they can be utilized again when we need the same call

In other words, by storing the result in an array we have reduced the excessive calls

Initialize the array with -1 and -1 means we don’t know the value

Therefore, by using the memorization approach we have reduced the time complexity of Fibonacci numbers from O()  to O(n)

``````#include <stdio.h>
int F[20]; //Create a global array of size 20
int fib(int n)
{
if(n<=1)
{
F[n]=n;//If n<=1 then store the value of n in F[n]
return n;
}
else{
if(F[n-2]==-1)//check if f[n-2]==-1
F[n-2]=fib(n-2);//call the function fib(n-2) and store the result in f[n-2]
if(F[n-1]==-1);
F[n-1]=fib (n-1);
return F[n-2]+F[n-1];//return the stored result
}
}
int main()
{
int i;
int x=7;
for(i=0;i<20;i++)
F[i]=-1; //initialize the whole array with -1 because 0 is also a Fibonacci term
printf("%d",fib(x));
return 0;
}``````

Output

``13``

Mohammed Anees

Hey there, welcome to aneescraftsmanship I am Mohammed Anees an independent developer/blogger. I like to share and discuss the craft with others plus the things which I have learned because I believe that through discussion and sharing a new world opens up
